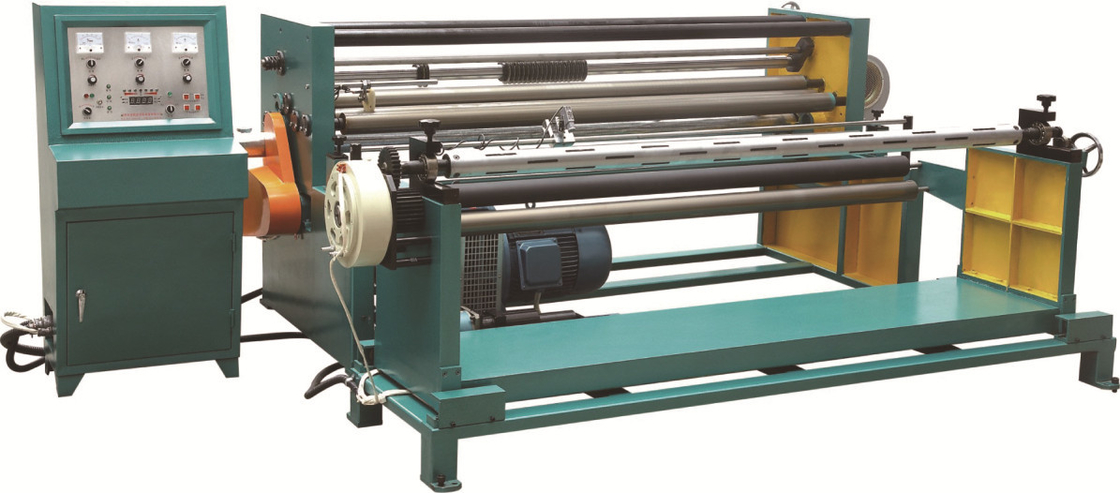

Name: PLF-1200N Full-Auto Photoelectric Paper Trimming Machine for Filter Production Equipment
Brand: leiman
SKU: PLF-1200N
Price: 8500 USD
Availability: InStock
Rating: 4.9 (155 reviews)

Casa Prodotti Macchina di pieghettatura rotatoria

PLF-1200N Full-Auto Photoelectric Paper Trimming Machine for Filter Production Equipment

Dettagli:

Luogo di origine:	La Cina
Marca:	leiman
Certificazione:	IS9001
Numero di modello:	PLF-1200N

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1set
Prezzo:	USD 8500 /SET
Imballaggi particolari:	Imballaggio di legno di caso
Termini di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione:	mese 5/SET/Per

Contatto

Descrizione di prodotto dettagliata

Larghezza:	tipo 1300C	Taglio dello spessore:	20g-300g
diametro massimo di riavvolgimento di materia prima:	800mm	Larghezza massima di taglio del materiale:	1300mm
Asse gonfiabile d'avvolgimento:	74mm	Accuratezza di correzione di deviazione:	±0.5 millimetro
Numero delle assi allo stesso tempo:	2	Taglio dell'accuratezza:	10 - 200 m/min
Potere totale:	5 W

The Best Quality PLF-1200N Full-Auto Photoelectric Paper Trimming Machine for Filter Production Equipment

Machine parameters

Specification

Product Name	PLF-1200N
Width	1300C type
Cutting Thickness	20–300 g/m² (depending on different raw materials)
Max. Diameter of Raw Material Unwindin	φ800 mm
Max. Diameter of Raw Material Rewinding	φ800 mm
Max. Width of Slitting Material	1300 mm
Winding Inflatable Shaft	φ74 mm

Number of Rewinding Shafts at the Same Time	2 (double shaft rewinding)
Deviation Correction Accuracy	±0.5 mm
Slitting Accuracy	±0.5 mm
Speed	10–200 m/min
Total Power	5 W
Body Color	gray cover white (other colors are optional)
Use automatic photoelectric correction	according to different raw materials and customer specific requirements

Features

This machine uses a DC motor to keep it running smoothly during acceleration; (frequency conversion speed regulation can also be used)
Automatic meter counting, alarm and other functions;
The rewinding adopts A air shaft structure, which is convenient for loading and unloading;
The unwinding adopts the photoelectric automatic correction system to make irregular materials can be slit normally
Automatic discharge device for flat knife slitting waste edge
Pneumatic shaft feeding, 3 inches

Applications

This machine is suitable for slitting various roll materials such as BOPP, PET, CPP, CPE, PVC, etc. During the production process, the materials are slit and rewinded according to different need.
